Overview

  • anello /a·nèl·lo/ sostantivo maschile 1.Cerchietto d'oro o d'argento o d'altro metallo. Translation: Circle or ring of gold or silver or other metal.
  • Anello Series ultimately showcases and accentuates certain design elements to foster, establish or emphasize a designers need to enhance a building's aesthetic, history and purpose by lighting a space with Anello! It is the intersection of art (architecture), design and technology.
  • DESIGNER SELECTIONS
  • Anello Series has 2 profile sizes. Anello 2.5 and Anello Canopy is a two and one half inch width and height of three and three quarter inches (lower LPF). Anello 3 is three inches in width and three and three quarters of an inch in height (higher LPF).

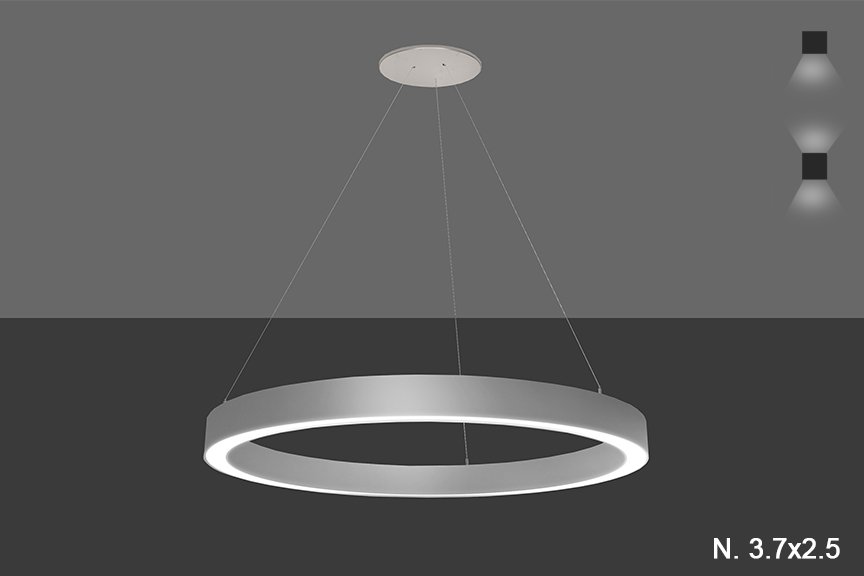

  • Anello Series can be pendant mounted, surface mounted and recessed. Glance under appropriate categories IE; surface, recessed, pendent.
  • Anello Series sizes are variable with Anello 2 and Anello 3, largest to date is 27 feet. Anello Canopy is limited to 5 feet diameter because of weight.
  • Anello Series has multiple choices for canopies and colors, just scroll down for your choices.
  • Anello Series is available in almost any CCT available in the market, we've selected the most popular , but don't let that stop you from asking for something different.
  • Anello Series qualifies as "Made in America" and is part of our ECO sustainable end of life program.
  • For all: ies files, pictures, instructions, rfa files, and warranties...scroll to bottom. Note; ies file must added in one foot increments.
  • Please be advised that our Anello Series is available in Pendant, Recessed and Surface.

Construction & Mounting

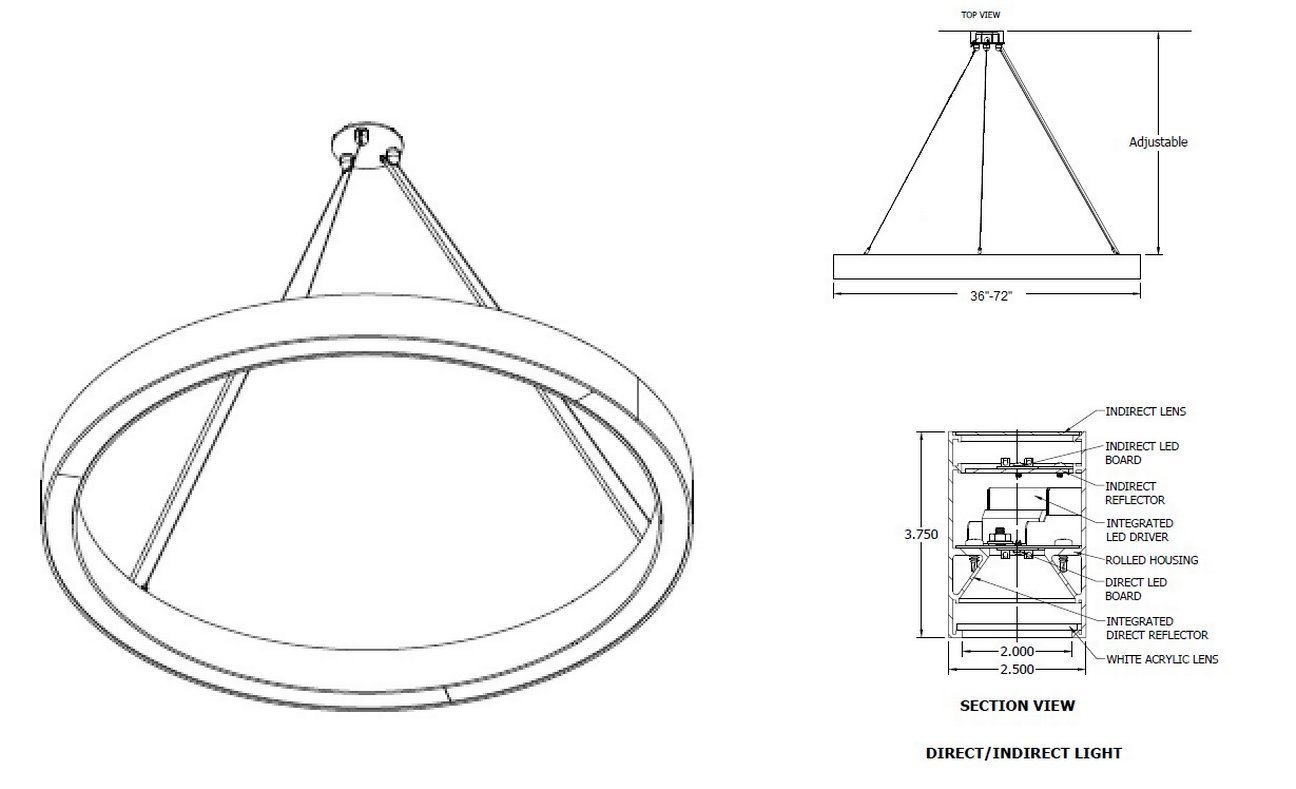

HOUSING
Extruded aluminum rings are supplied in our standard nominal sizes of 3 ft., 4 ft., 5 ft., and 6 ft.. Custom sizes are also available in our standard Anello. Each ring can be shipped containing from 2-4 sections that are locked together with ring clamps for perfect joint connection. Easy access to driver and LED boards.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output

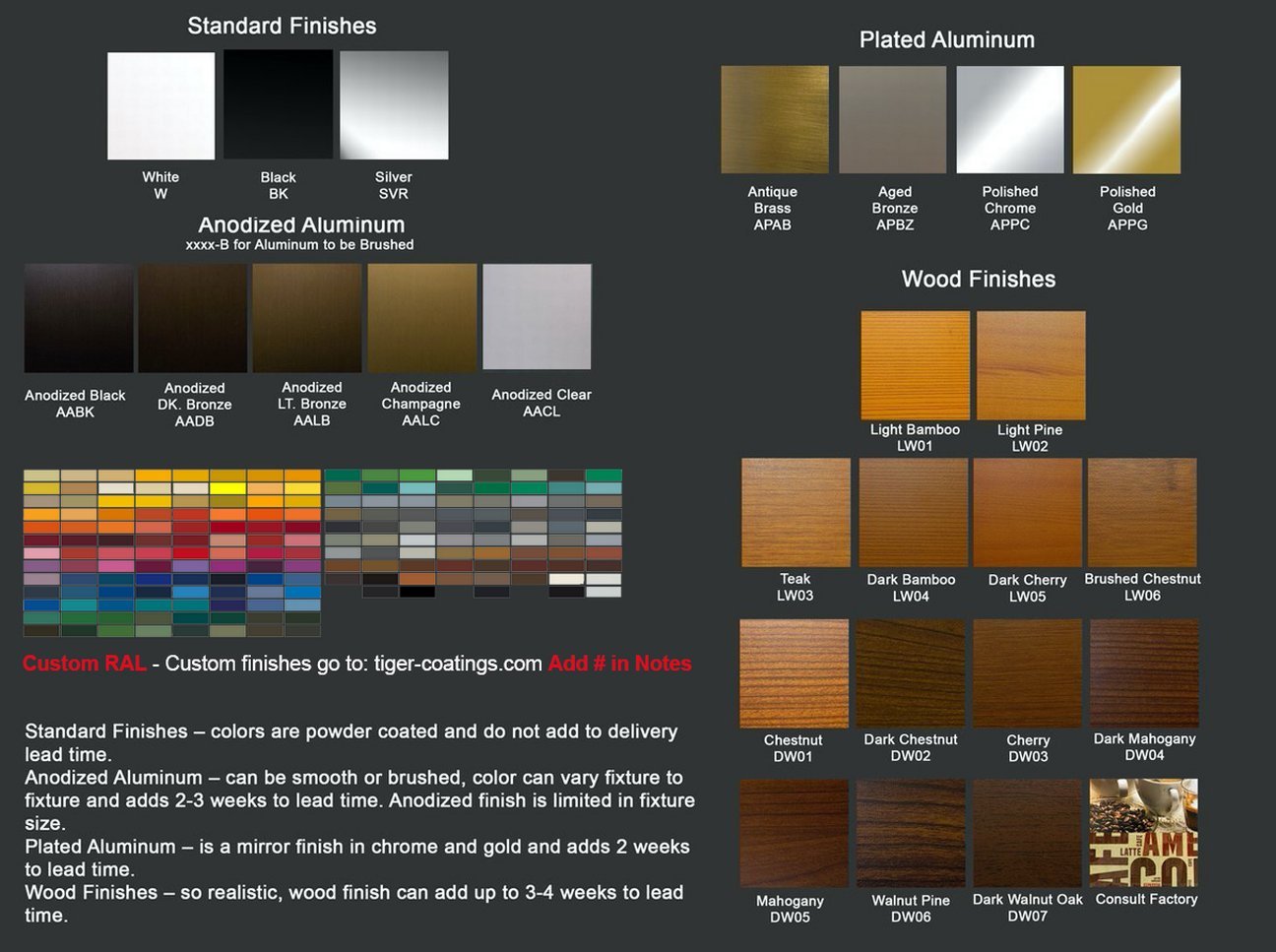

FINISH
Standard powder-coated colors are white, black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices. Contact factory for wood finishes.
OPTICS
Slightly regressed, lay-in acrylic lens formulated for LED light sources. Lift and shift lens.
MOUNTING

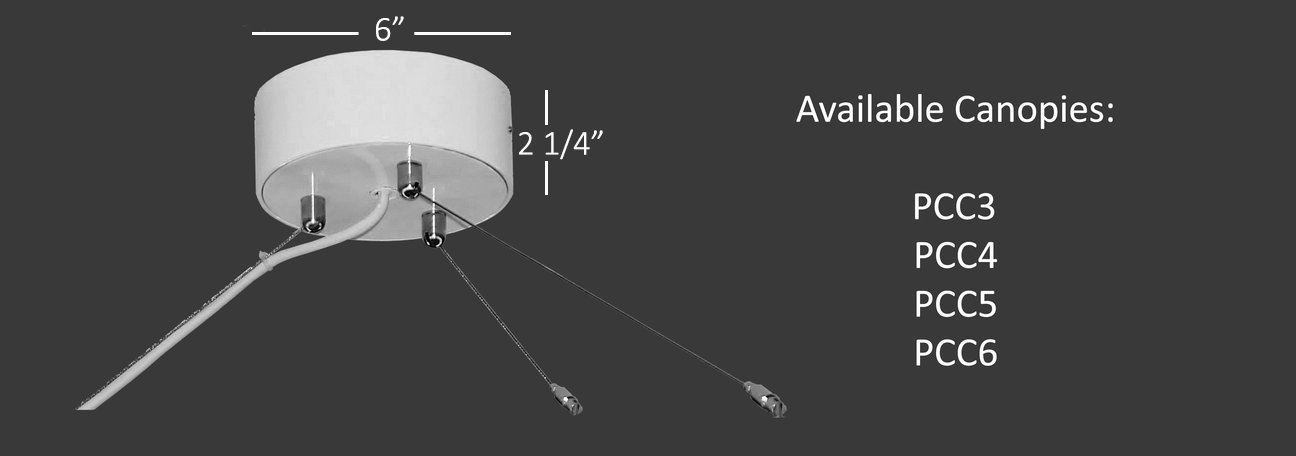

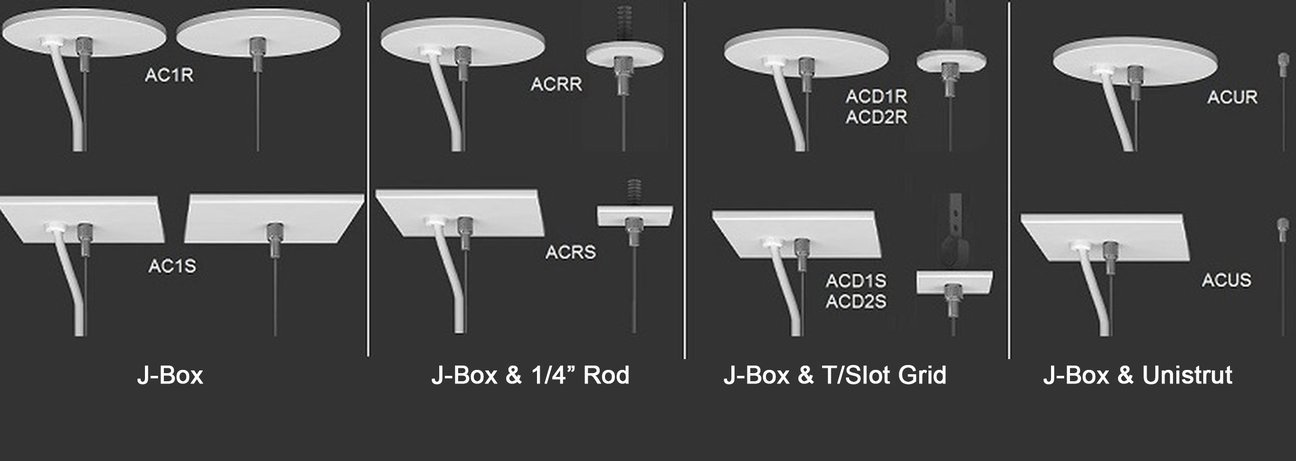

Cable mounting with various size canopies and power feeds. Cable uses gripper style locking for field adjustments 48" standard. Canopy mounts to standard J-box and larger sizes may require Picasso re-enforced canopy.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 4.3 WPF Direct (3.4 WPF Indirect) 350 LPF 81 2700=.95
Medium 3000 6.02 WPF Direct (4.8 WPF Indirect) 500 LPF 82 3000=1
High 3000 9 WPF Direct (7.3WPF Indirect) 750 LPF 82 3500=1.01
Very High 3000 12.7 WPF Direct (9.7 WPF Indirect) 1000 LPF (fixture size width becomes 3" 79 4000=1.03
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • Custom Lumens Available
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Emergency drivers are factory installed as an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.
  • POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
  • I.C. rated fixtures are available upon request.
  • Chicago Plenum and IC products are available upon request.
  • Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
  • UL and CUL listed for dry and damp locations.
  • IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
  • We manufacture based on approved spec sheets and submittals signed by professionals responsible. Change orders must be in writing and will delay delivery.
  • Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.

Downloads

PHOTOMETRIC REPORTS & IES

Catalog Number LED IES File PDF Report
6in Anello 350 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 350 Lumens Direct - 350 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 350 Lumens Direct - 500 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 350 Lumens Direct - 750 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 350 Lumens Direct - 1000 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 500 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 500 Lumens Direct - 350 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 500 Lumens Direct - 500 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 500 Lumens Direct - 750 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 500 Lumens Direct - 1000 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 750 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 750 Lumens Direct - 350 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 750 Lumens Direct - 500 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 750 Lumens Direct - 750 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 750 Lumens Direct - 1000 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 1000 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 1000 Lumens Direct - 350 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 1000 Lumens Direct - 500 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 1000 Lumens Direct - 750 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD
6in Anello 1000 Lumens Direct - 1000 Lumens Indirect 80+ CRI 3000K DOWNLOAD DOWNLOAD

SPEC SHEETS

Anello Canopy Flush Lens Standard Spec Sheet DOWNLOAD
Anello Canopy Flush Lens Custom Spec Sheet BUILD

Instructions

Please contact factory for Instructions and Revit files. DOWNLOAD

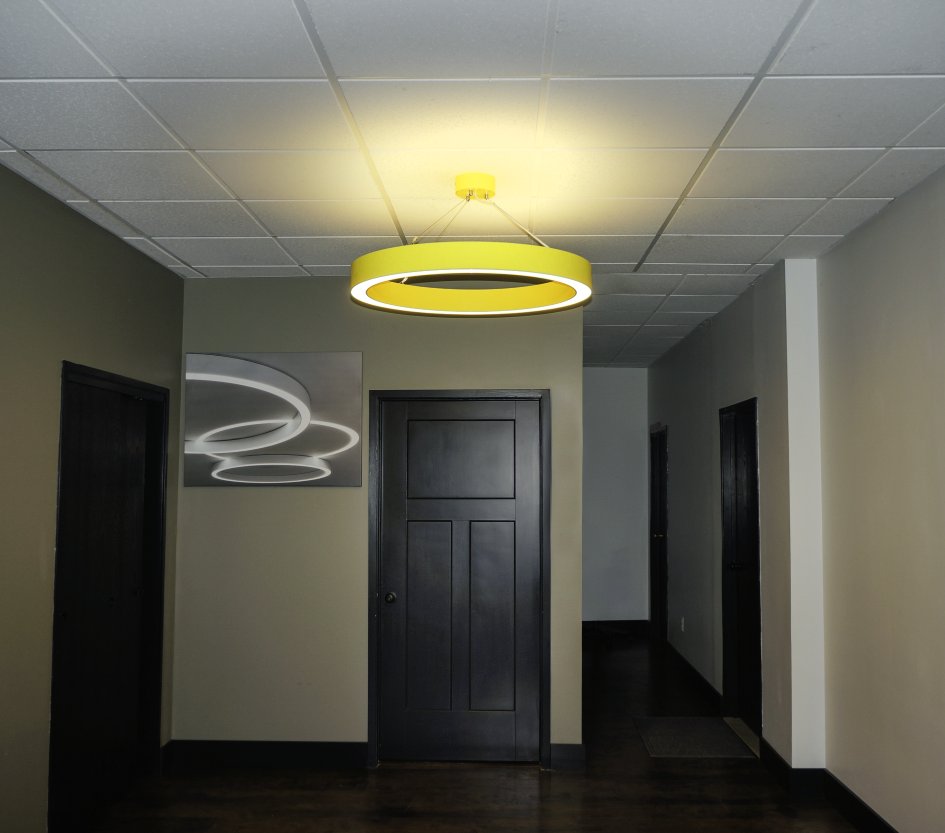

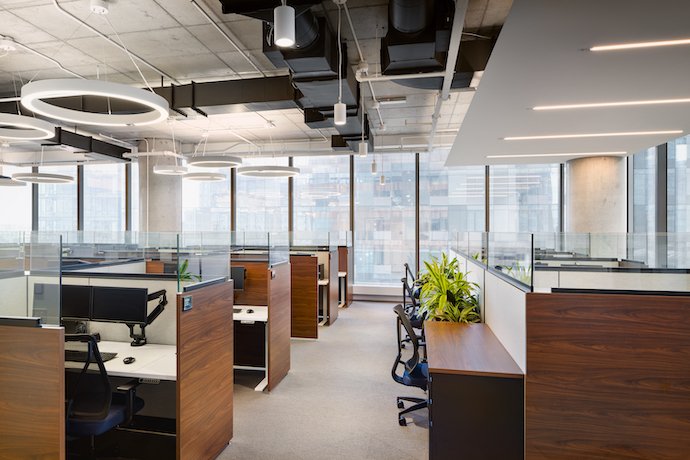

PHOTOS
