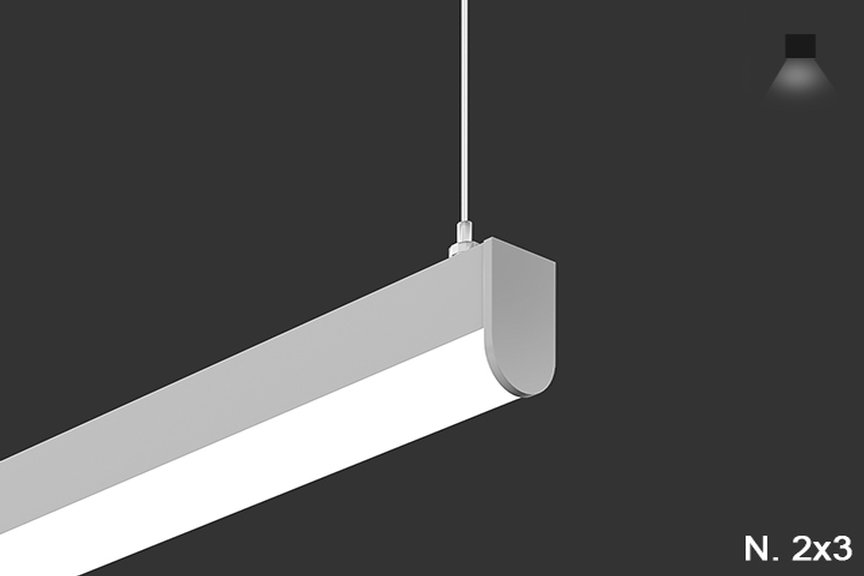

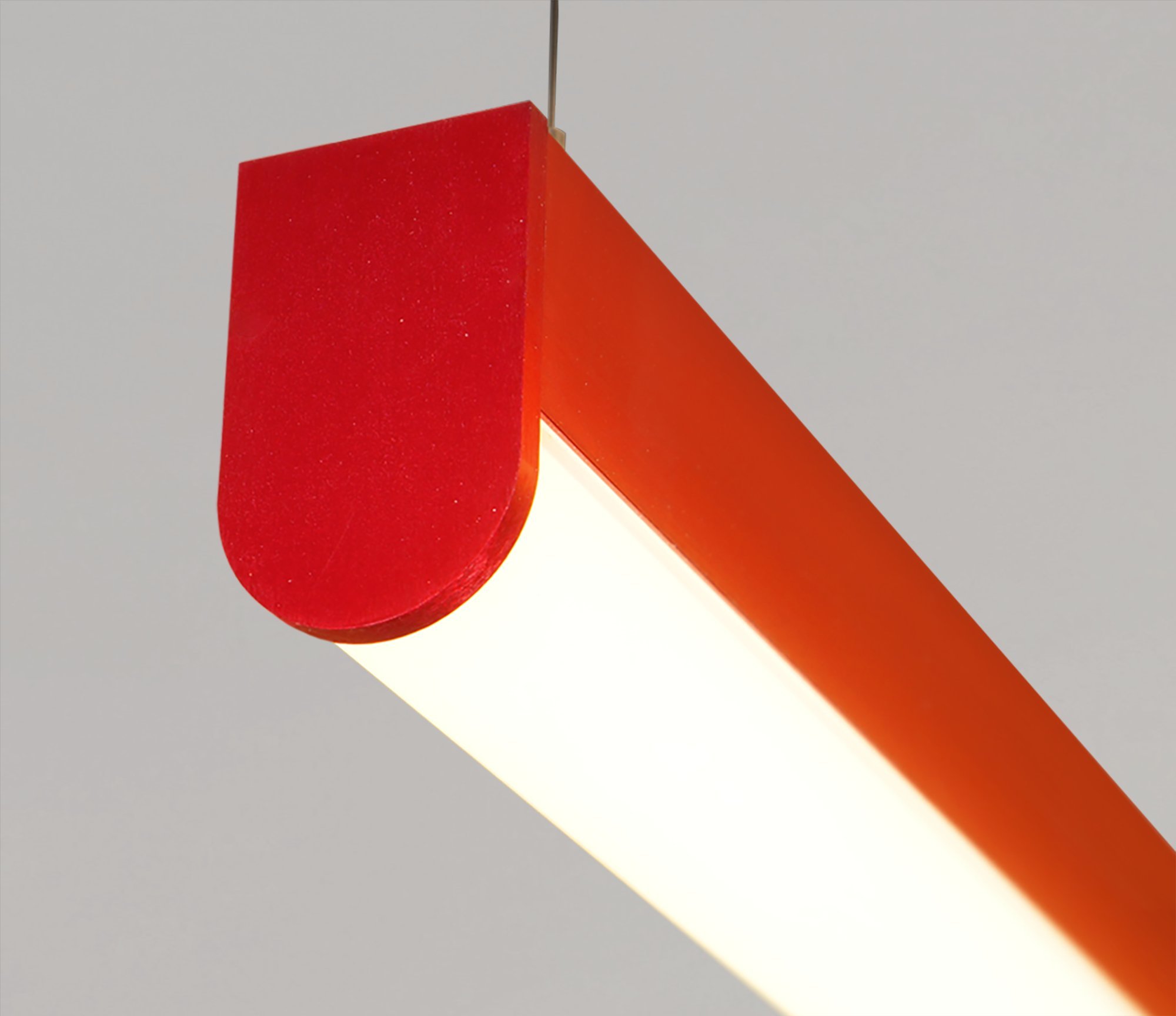

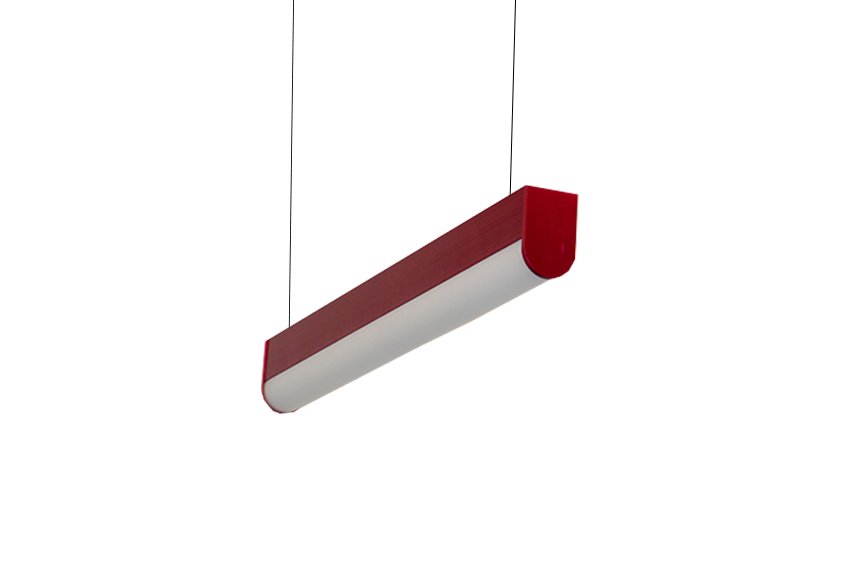

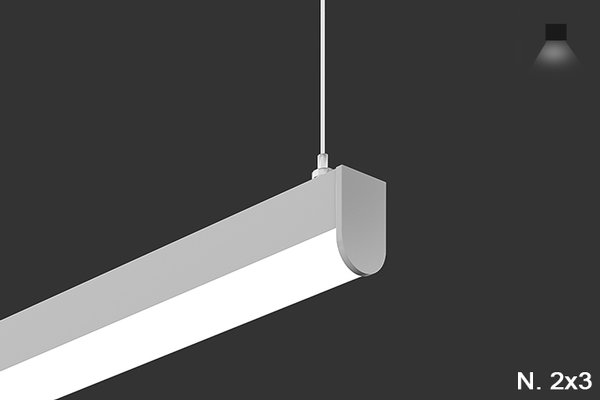

• Aesthetically pleasing round design with a tool-less snap on gear tray and a snap on frosted acrylic lens. End caps, milled for eliminating light leaks, can be magnetic or with screws.
  • One piece extruded aluminum housing with integral driver
  • Direct lighting only
  • Continuous row mounting, standard
  • Can be specified as surface ceiling or surface wall
  • Various patterns available - consult factory
  • Standard color white, black. Custom wood, anodizing, RAL/Pantone#

Construction & Mounting

Extruded aluminum housings are supplied in nominal lengths of 3 ft., 4 ft., 6 ft., 8 ft. and 12 ft. Fixtures may be continuously rowed (contact factory for details). End caps are extruded,milled aluminum and encapsulate ends of lenses to minimize light leaks. Custom sizes are available.
Integral powder-coated LED housing with excessive reflectivity for increased lumen output

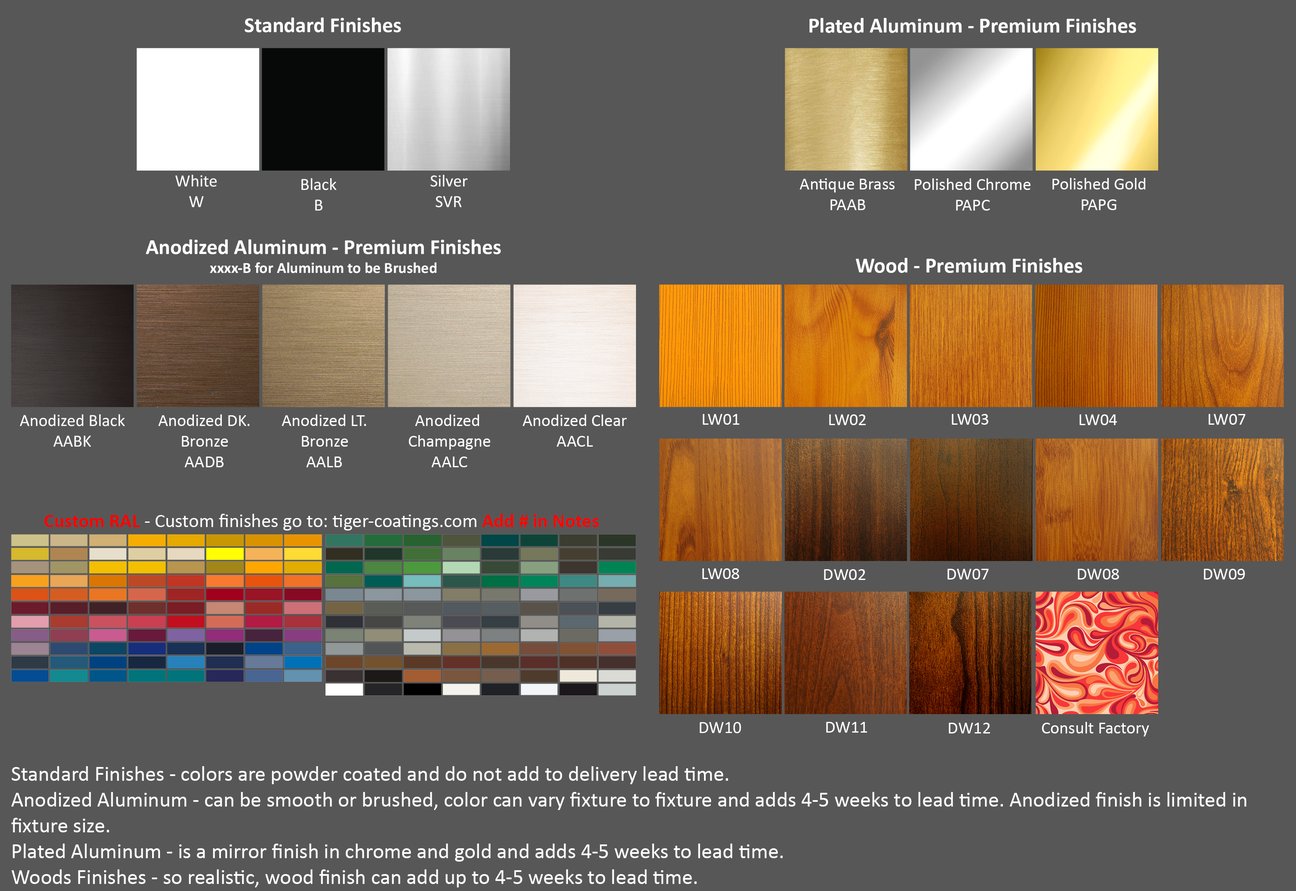

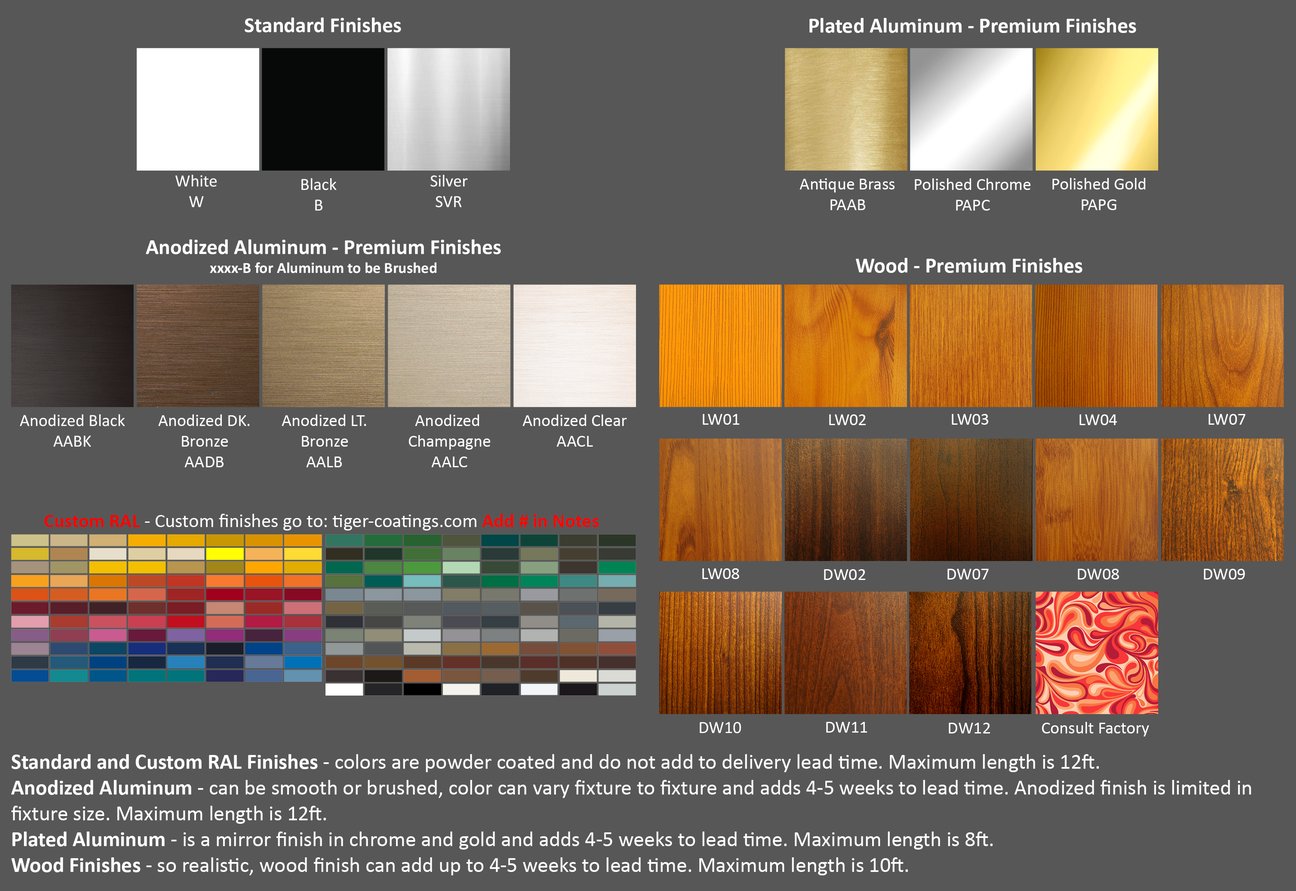

Standard powder-coated colors are white and black. Custom processed wood finishes and aluminum anodized finishes are available as well: see finishes chart. We will also accept RAL and Pantone numbers for powder-coating color choices.
Extruded round snap-in frosted acrylic lens formulated for LED light sources

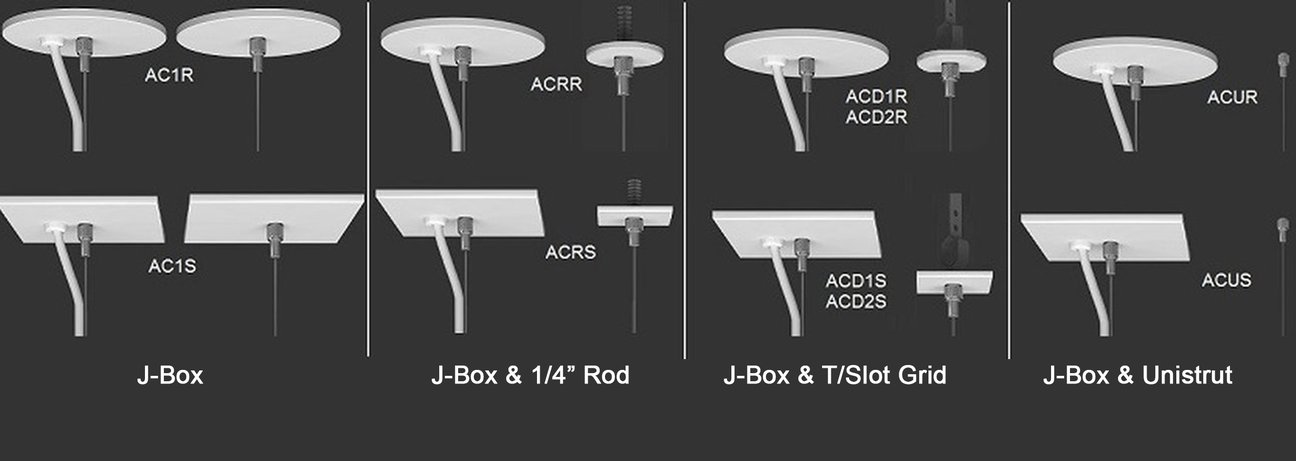

Cable mounting with various size canopies and power feeds. Cable uses gripper style locking for field adjustments with 5 feet of cable standard . Canopy mounts to standard J-box. Can also be stem mounted with canopy . See accessories for more information.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 2.88 WPF 350 LPF 123 LPW 2700 = .95
Medium 3000 4.15 WPF 500 LPF 121 LPW 3000 = 1
High 3000 6.33 WPF 750 LPF 119 LPW 3500 = 1.01
Very High 3000 8.48 WPF 1000 LPF 119 LPW 4000 = 1.03
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours
  • Custom Lumens Available

Electrical / Driver

  • Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Emergency drivers are factory installed, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products.
  • I.C. rated fixtures are available upon request.
  • All fixtures are IBEW manufactured and assembled.
  • UL and CUL listed for dry and damp locations.
  • Chicago Plenum products are available upon request.
  • Made in the U.S.A.



Catalog Number LED IES File PDF Report
Nicole 350 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
Nicole 500 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
Nicole 750 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
Nicole 1000 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
UL Photometric Lab 80+ CRI 3000K DOWNLOAD DOWNLOAD


Nicole Pendant Standard Spec Sheet DOWNLOAD
Nicole Pendant Custom Spec Sheet BUILD
