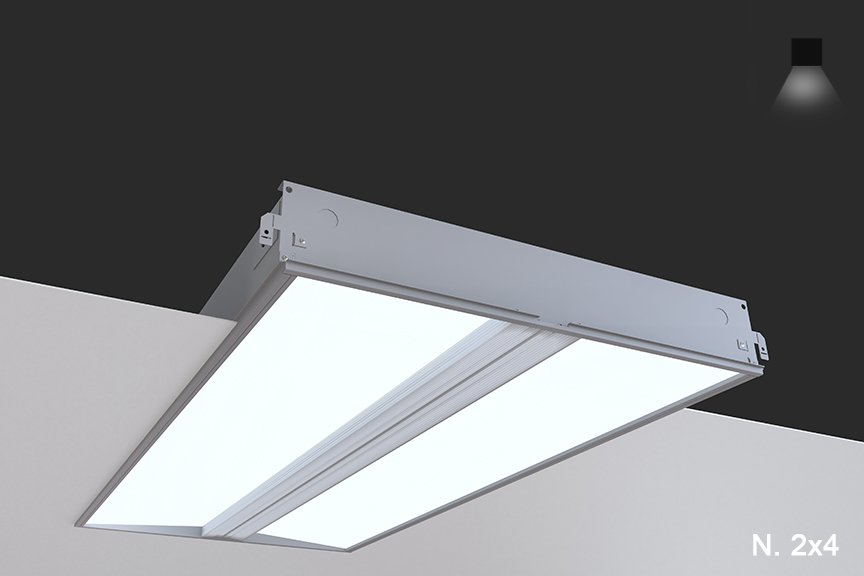

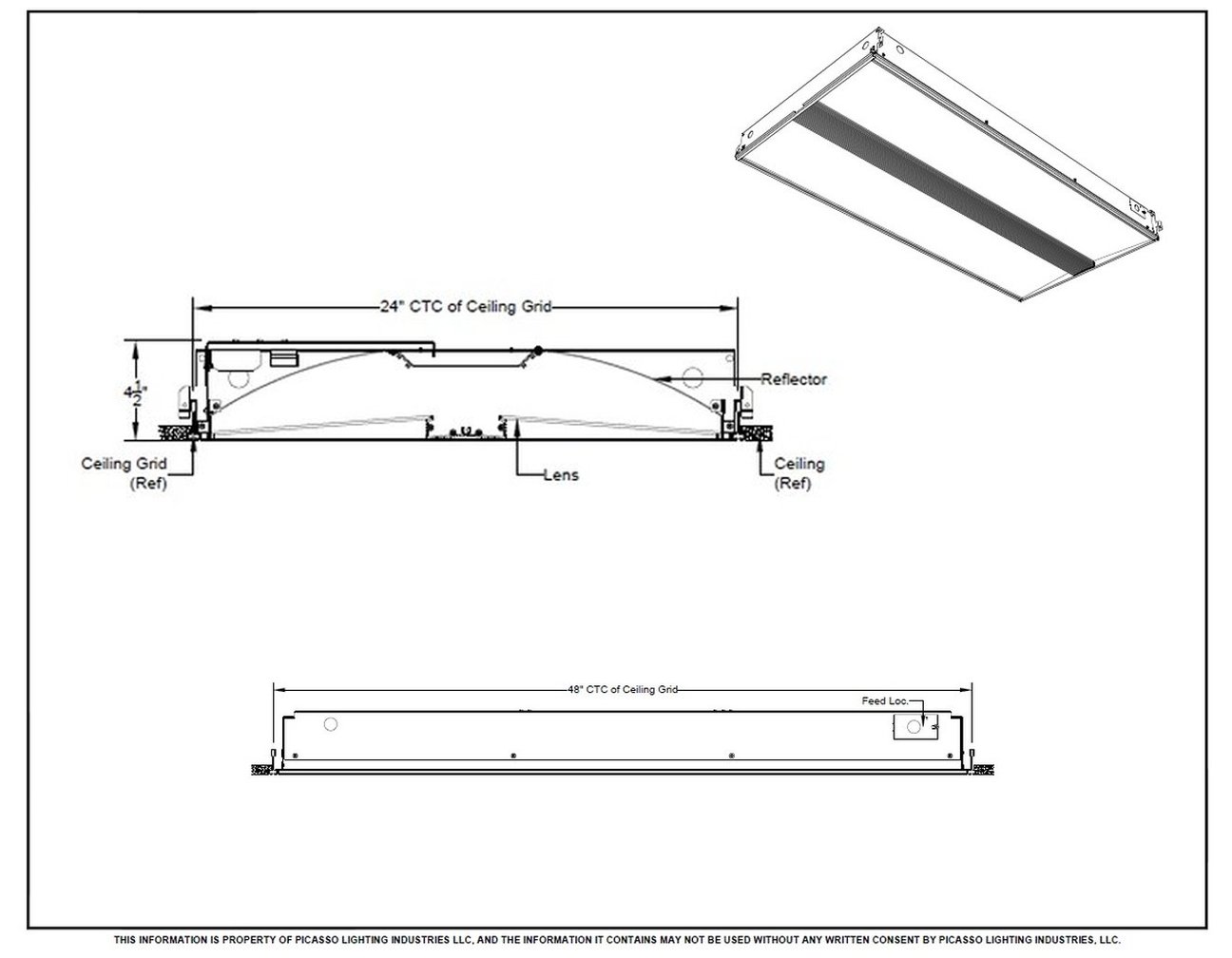

Excellent design, precision-tooling and automated production is the combination that produces our troffer style housings. Most industry today uses pre-painted,folded 22 gauge steel. We use die formed 20 gauge steel. Ceiling thickness unrestricted.
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
Standard powder-coated colors are white. Troffer style fixtures are not limited to white, consult factory for special applications.
Side lenses are either frosted (standard) or soft white acrylic (optional). Lift and shift removal.

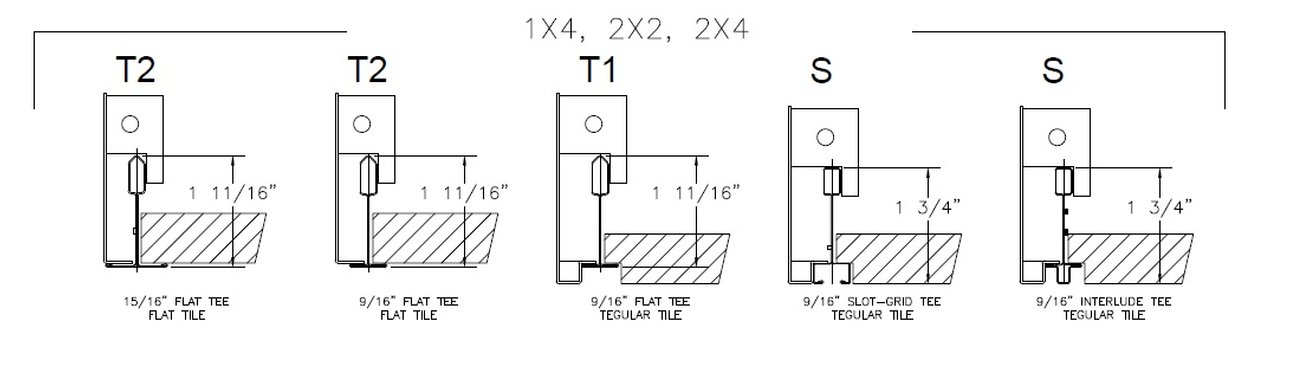

Our recessed fixtures are made to be mounted in slot grid, T-bar and sheetrock ceilings. See mounting detail. Other ceiling types, please consult the factory, we can accommodate many different applications.
CCT Color Temp
Lumens per Watt
The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
Our light engines are precisely designed for optimal operation of LED assemblies.
Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
CRI offered is 80+, and 90+
Note: on 90+ CRI use .85 multiplier
Tunable white, warm dim and other special LED colors available.
We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
Light engines are easily replaced.
We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
LED life is rated at 50,000 hours
Custom Lumens Available
Electrical / Driver
Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers.
If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available.
Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
Emergency drivers are factory installed, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.
Build Your Spec Sheet
Certifications & Warranties
Limited five-year (50,000 hours) warranty on all products.
I.C. rated fixtures are available upon request.
All fixtures are IBEW manufactured and assembled.
UL and CUL listed for dry and damp locations.
Chicago Plenum products are available upon request.
