Overview

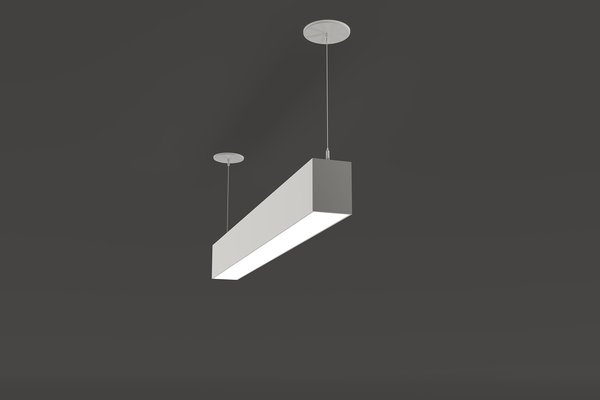

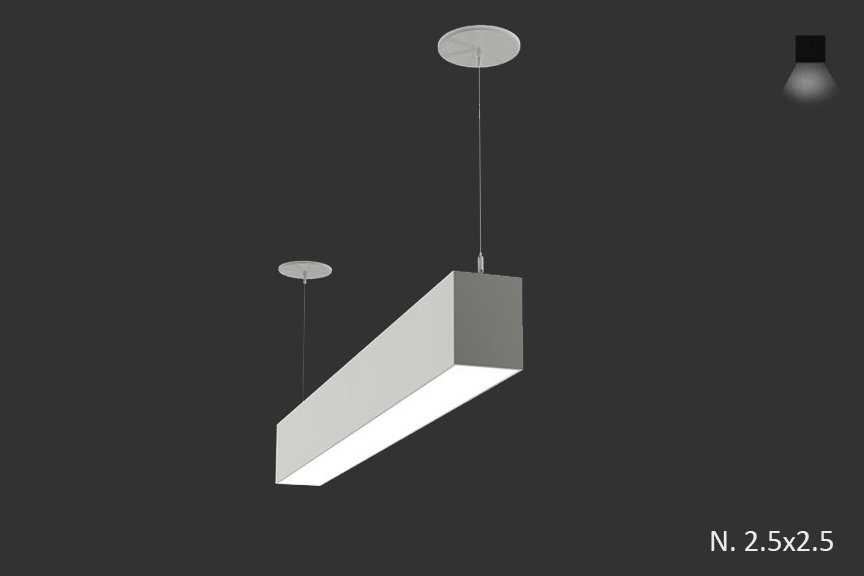

  • EZ Ship is when your looking for a fast solution to a space where you need an 8 foot or 4 foot single pendant
  • No waiting for Submittals, Drawings, Bill of Materials, or Approvals.
  • Order 1 Power End Cap Kit per unit, no Joiners.
  • Aesthetically pleasing Sienna has a square design with a tool-less snap on gear tray and a snap on frosted acrylic lens. End caps are milled for eliminating light leaks.
  • Direct lighting only.
  • If you need this product in linear rows, look under EZ Continuous Row.
  • If you need this product in special lengths, colors , and patterns, please look at our standard Sienna under pendants large.

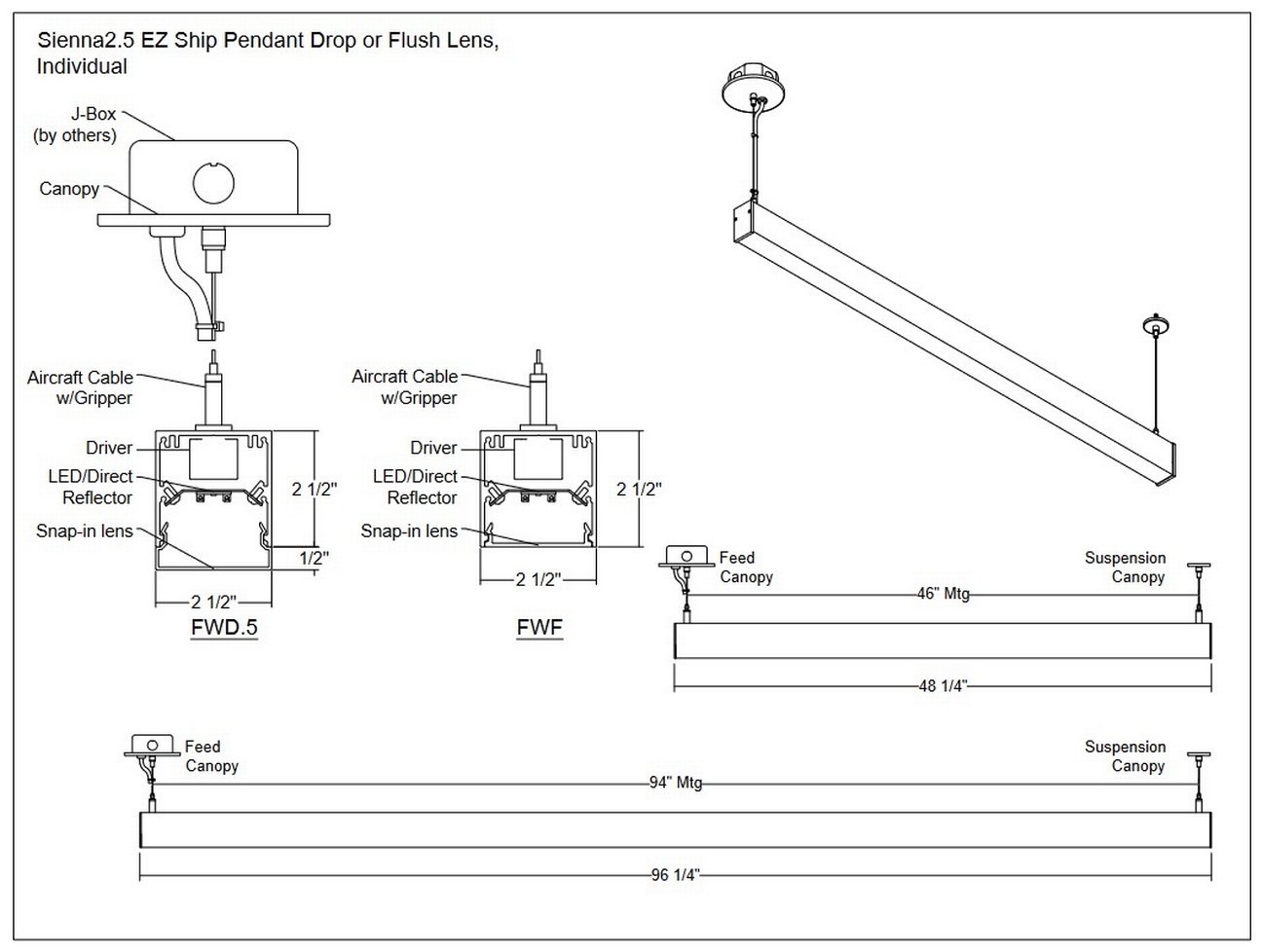

Construction & Mounting

HOUSING
Extruded aluminum housings are supplied in nominal lengths of 4 or 8 feet End caps are extruded,milled aluminum and encapsulate ends of lenses to minimize light leaks.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
FINISH
Standard powder-coated colors are white, black.
OPTICS
Extruded frosted acrylic snap-in lens formulated for LED light sources.
MOUNTING
Cable mounting with various 5" canopies and power feeds. canopy color and cord will be white or black. Cable uses gripper style locking for field adjustments,48" standard. Canopy mounts to standard J-box.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3500 5.3 WPF 350 LPF 66 LPW 90+ CRI
Medium 3500 7.5 WPF 500 LPF 67 LPW 90+ CRI
High 3500 11.2 WPF 750 LPF 67 LPW 90+ CRI
  • The table above is a quick reference based on per foot. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 3000K to 3500K in EZ Ship program.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • LED life is rated at 50,000 hours
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
  • Emergency drivers are factory installed as an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
  • IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
  • Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
  • UL and CUL listed for dry and damp locations.
  • Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.

Downloads

PHOTOMETRIC REPORTS & IES

Catalog Number LED IES File PDF Report
Sienna 350 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
Sienna 500 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD
Sienna 750 Lumens Direct 80+ CRI 3000K DOWNLOAD DOWNLOAD

SPEC SHEETS

Sienna 2.5 EZ-P Individual Standard Spec Sheet DOWNLOAD
Sienna 2.5 EZ-P Individual Custom Spec Sheet BUILD

Instructions

Please contact factory for Instructions and Revit files. DOWNLOAD
