Edge-Lit Exit Sign View all our products
Five Series
Overview

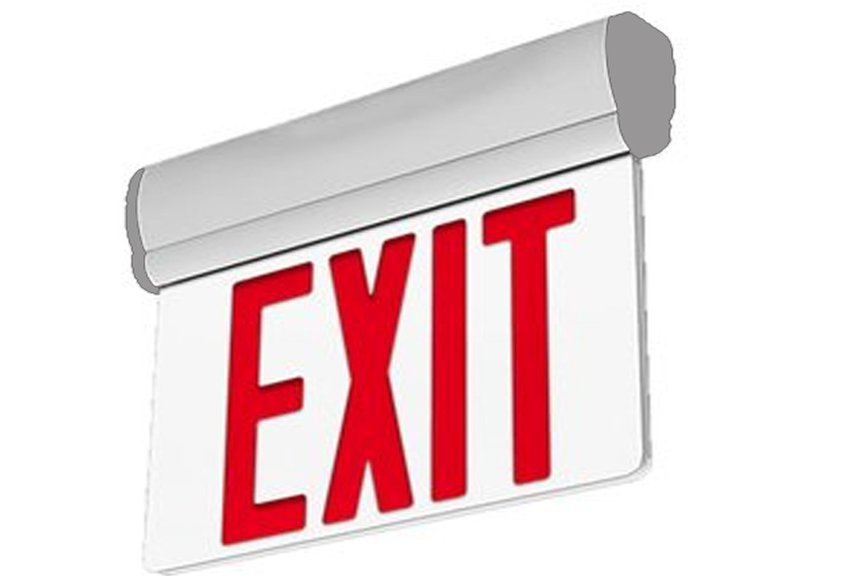

- Five applications in one package, recessed, flag mount, ceiling mount, wall mount with options of 1 face (clear) or 2 face (mylar) installations. All included in one box.
- Stem mounted, not included in the package, must spec under stem options. Stem kit comes with four one foot stems , you can use one, two, three, or all four.
- UL 924 listed, NEC, OSHA, and NFPA 101 Life Safety Code requirements.
- Listed for damp location
- Sloped ceiling adjustability
- Field Installable arrows for left, right or both directions.
- Test switch, and charge rate indicator to insure long-lasting illumination without line voltage power.
- When creating a spec sheet please take note that all 5 mounting options come in 1 box.
- We've added a create your own spec for submittal record purposes. NYC 8" approved.
- Dual Voltage 120v/277AC
- NYC 8" approved.
Construction & Mounting
- HOUSING
- Housing is constructed of aluminum with injection-molded acrylic end caps. Recessed housing comes with hanger bars. The front cover is removable for easy installation.
- MOUNTING

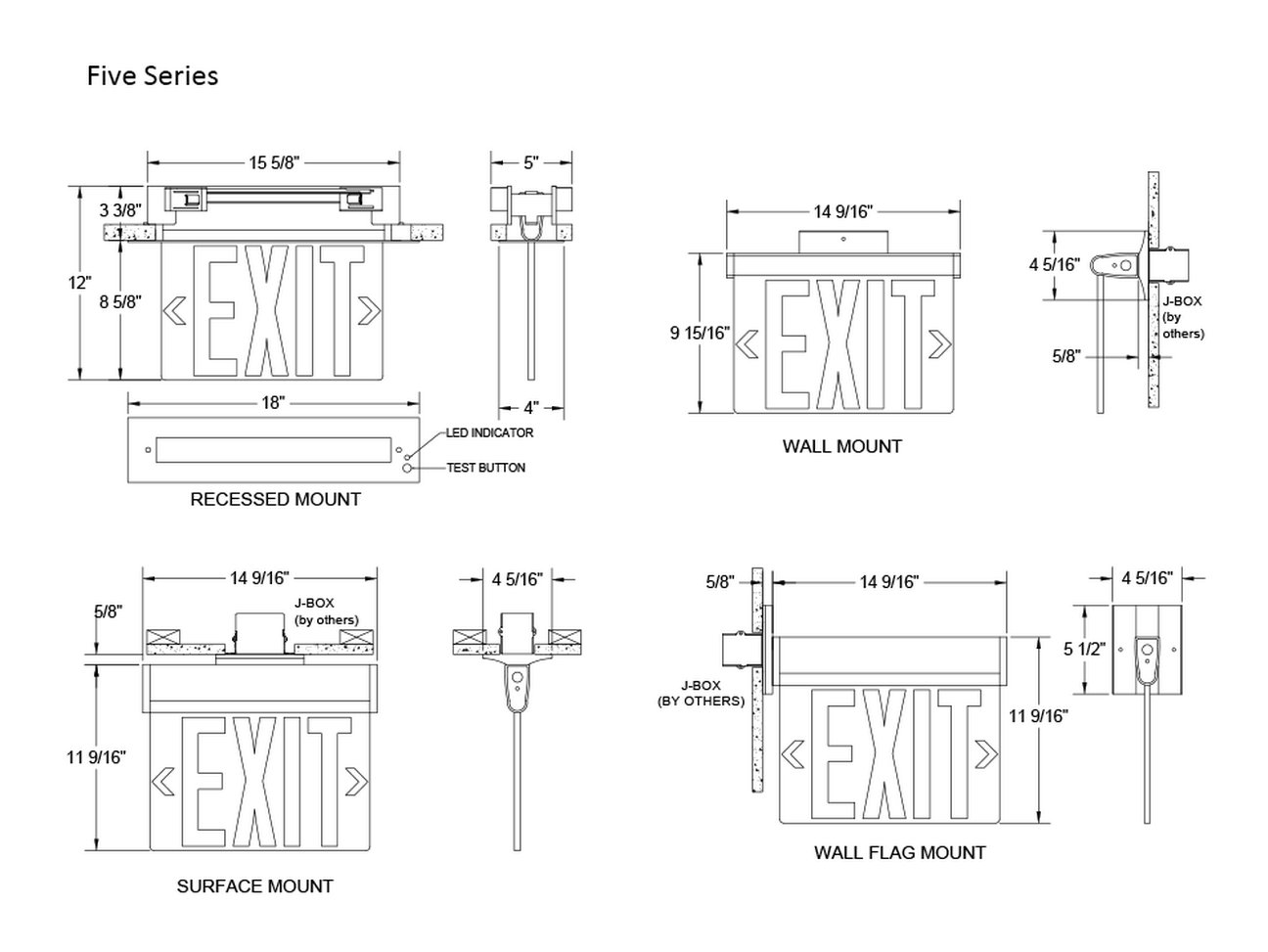

- The "Five Series" is an all in one package product. Five different installations in all, recessed, flat wall, flag, ceiling and options of one or two face direction in one box.
- OPTICS
- The Five Series incorporates a strip of long-lasting LEDs at the bottom of the housing to illuminate the sign evenly. LEDs are red to enhance the red exit and direction arrows.
LED Performance
| LED Output | CCT Color Temp | Watts | Lumens | Lumens per Watt | CCT Multiplier |
|---|---|---|---|---|---|
| Soft | Red | 3.72 TW 120VAC | NA | NA | NA |
| Soft | Red | 3.87 TW 277VAC | NA | NA | NA |
- The table above is a quick reference.
- Our light engines are precisely designed for optimal operation of LED assemblies.
- Relamp LEDs with only SEL-800R-LED lamp assembly.
- Circuit boards designed to ensure high luminescence efficiency, low thermal resistance, and long-term reliable operation.
- LED light engines are easily replaced.
Electrical / Driver
- Drivers - Our drivers are specifically selected based on fixture applications to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC.
- UL 924 approved under emergency lighting and power equipment.
- EMR is a minimum of 90 minutes operation to meet code.
- Replace the battery with MYD battery PN AAA300, rated 300mah, 4.8v.
- Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC.
- The emergency battery is a recyclable Ni-Cad battery at 4.8V @ 300ma.
- Test switch and charge indicator.
- Suitable for damp location. Use in 10 Celsius (min) to 40 Celsius (max) ambient temperature.
Certifications & Warranties
- Limited five-year limited warranty on all products that are installed according to the product’s specifications. Fixture must be properly installed by qualified licensed electricians, who meet and understand local installation requirements. Proper ambient conditions are to be met. The normal indoor temperatures of 50-90 degrees F, no more than 95% RH and sufficient air flow are required. Fixture should not be modified, and no maintenance or repairs should be performed without the written authorization from Picasso Lighting.
- We manufacture based on approved spec sheets and submittals signed by the customers. Change orders must be in writing and will delay delivery.
- Picasso Lighting reserves the right to repair or replace a defective product with another product with a similar design and the same or better performance, or to refund the distributor for the purchase price. The costs of labor to replace luminaires are not covered.
- Warranty does not cover damage caused by transportation, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
- Picasso Lighting must receive in writing any complaints regarding the defective products, no later than 3 weeks from delivery addressed to: [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product or may require product to be sent back to the factory for repair. The customer is responsible for the costs of disassembly and reassembly. We do accept field repairs and replacement labor from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
- IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA. UL listed for dry and damp locations.
