Overview

  • Catalina /ka tuh lee nuh/ girl's name of Greek origin, meaning "pure"
  • Catalina is a product you can design coves and task lighting by using our very low profile modular sections that create a smooth even illumination using LED boards and not tape.
  • DESIGNER SELECTIONS

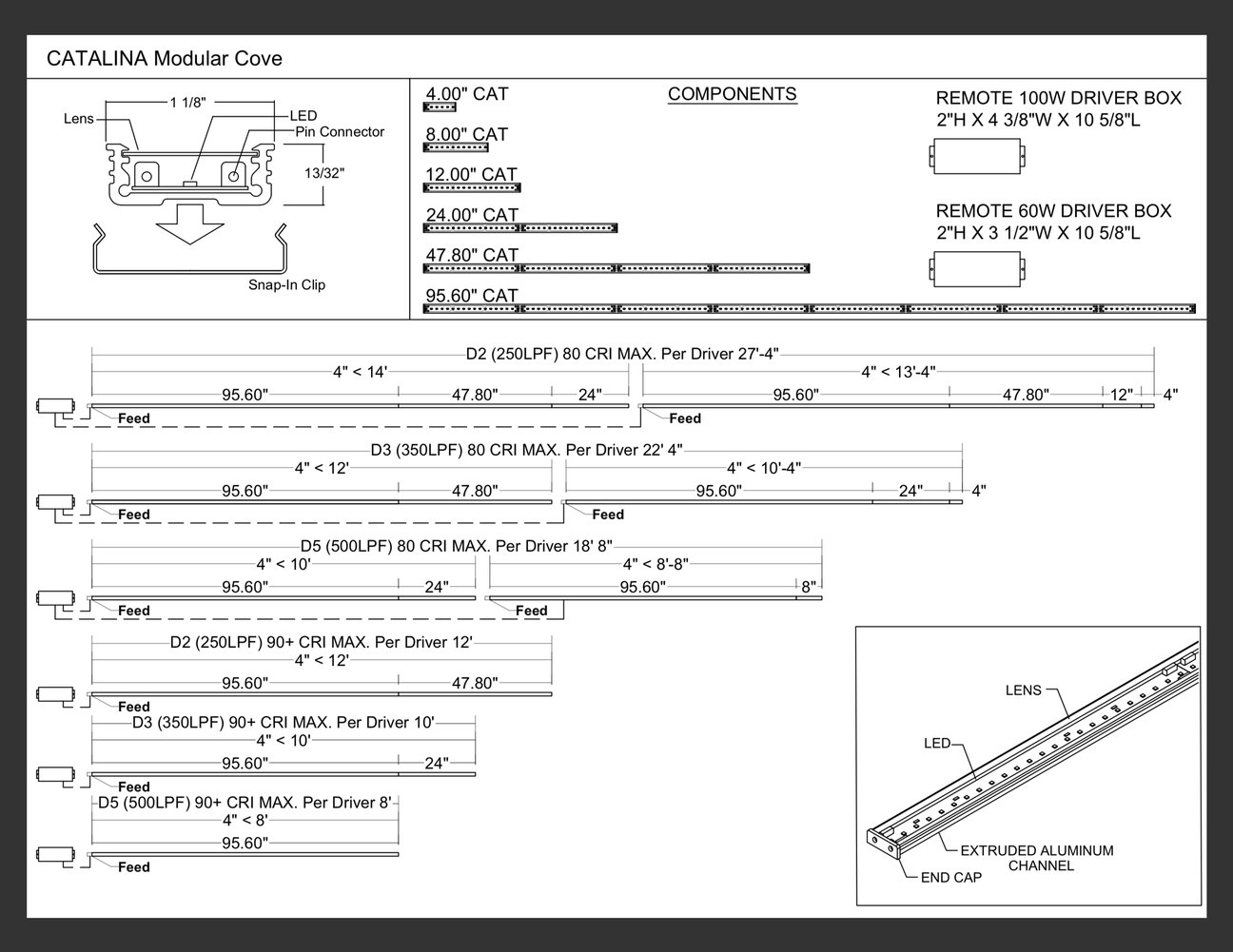

  • Catalina Series has 1 profile size and 6 standard lengths. Thirteen and thirty-two inches in height ( just over three eights) and one and one eighth in width. Modular lengths are four, eight, twelve, twenty four, forty eight and ninety-six inches.
  • Catalina Series information we need are dimensions of task, cove or space you’re looking to illuminate.
  • We calculate remote drivers needed based on your LPF requirements. We can also tune in our drivers to specific lumen output if required.
  • Catalina Series is available in almost any CCT available in the market, we've selected the most popular, but don't let that stop you from asking for something different.
  • Catalina Series is always available for your projects special customization needs, just contact your local agent.
  • Catalina Series qualifies as "Made in America" and is part of our ECO sustainable end of life program.
  • For all: ies files, pictures, instructions, rfa files, and warranties...scroll to bottom.

Construction & Mounting

HOUSING

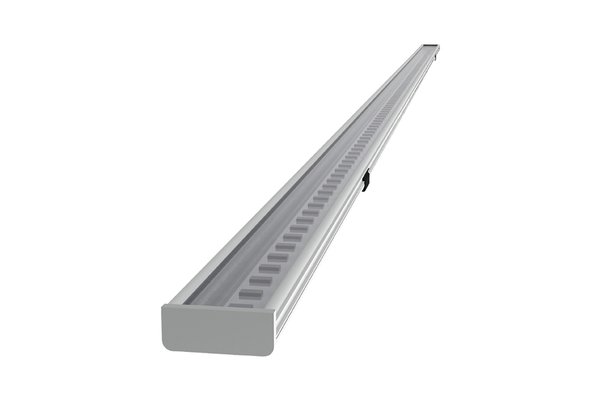

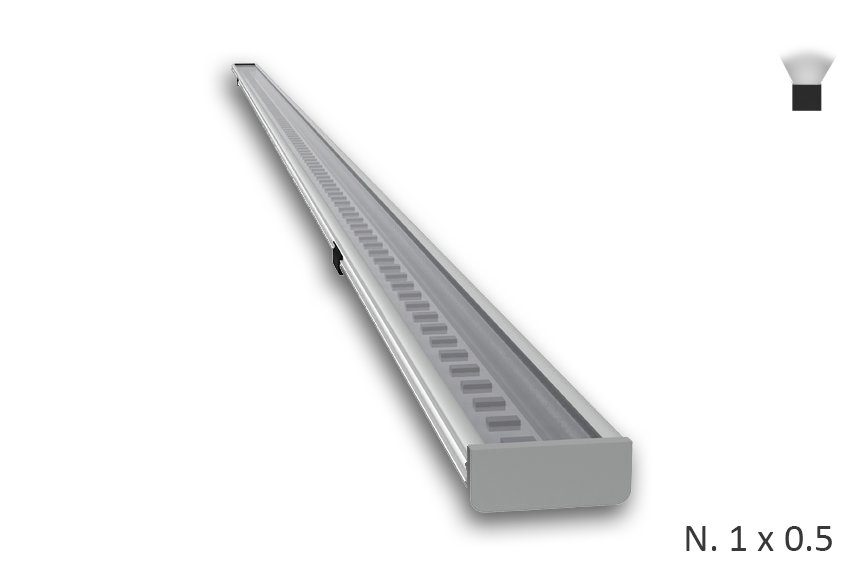

Low profile extruded aluminum housing supports LED printed circuit boards. Mounting clips included. Driver is remote. Lengths are connected by large bi-pins male/female.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
FINISH
Brushed aluminum
OPTICS
Clear lens, frosted available.
MOUNTING
Mounting Clips supplied, non adjustable.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 3.3 WPF 250 LPF 76 2700 = .95
Medium 3000 4 WPF 350 LPF 87.5 3000 = 1
High 3000 4.8 WPF 500 LPF 104 3500 = 1.01
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • Custom Lumens Available
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Emergency drivers are factory installed as an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.
  • Whip - Six feet long, wiring RHOS/Reach Compliant, 18 gauge, 600v rated, Specify wired to the fixture as an OPTION.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year limited warranty on all products that are installed according to the product’s specifications. Fixture must be properly installed by qualified licensed electricians, who meet and understand local installation requirements. Proper ambient conditions are to be met. The normal indoor temperatures of 50-90 degrees F, no more than 95% RH and sufficient air flow are required. Fixture should not be modified, and no maintenance or repairs should be performed without the written authorization from Picasso Lighting.
  • We manufacture based on approved spec sheets and submittals signed by the customers. Change orders must be in writing and will delay delivery.
  • Picasso Lighting reserves the right to repair or replace a defective product with another product with a similar design and the same or better performance, or to refund the distributor for the purchase price. The costs of labor to replace luminaires are not covered.
  • Warranty does not cover damage caused by transportation, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
  • Picasso Lighting must receive in writing any complaints regarding the defective products, no later than 3 weeks from delivery addressed to: [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product or may require product to be sent back to the factory for repair. The customer is responsible for the costs of disassembly and reassembly. We do accept field repairs and replacement labor from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
  • IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA. UL listed for dry and damp locations.

Downloads

PHOTOMETRIC REPORTS & IES

Catalog Number LED IES File PDF Report
Catalina 250 Lumens Direct or Indirect (with opal lens) 80+ CRI 3000K DOWNLOAD DOWNLOAD
Catalina 350 Lumens Direct or Indirect (with opal lens) 80+ CRI 3000K DOWNLOAD DOWNLOAD
Catalina 500 Lumens Direct or Indirect (with opal lens) 80+ CRI 3000K DOWNLOAD DOWNLOAD

SPEC SHEETS

Catalina (Remote Driver) Standard Spec Sheet DOWNLOAD
Catalina (Remote Driver) Custom Spec Sheet BUILD

Instructions

Catalina Modular Cove Instructions DOWNLOAD
Please contact factory for Revit files. DOWNLOAD
